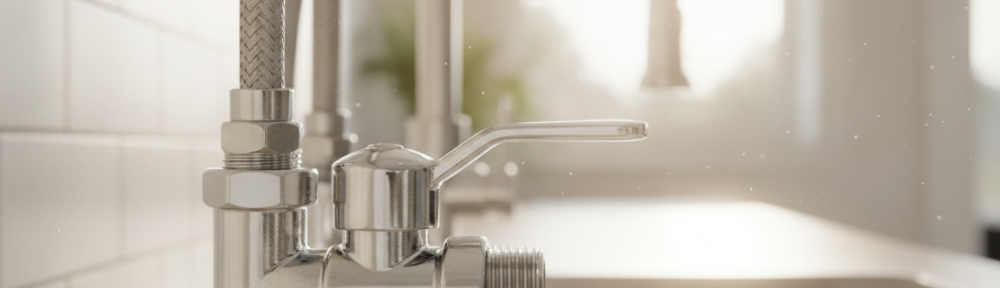

A small angle stop is an L-shaped valve installed where the supply line serves a fixture. These valves are commonly found beneath sinks, behind toilets, and near appliance hookups. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means maintenance jobs can be completed more easily.

What Is An Angle Stop
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. These are quicker to operate and tend to last longer. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.

Important Points

• A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
• Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
• An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
• Quarter-turn models are commonly preferred because they offer dependable performance.
• Replace valves that leak, corrode, or become difficult to operate to avoid water damage.

What Is An Angle Stop And Why It Matters

The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance contained.

Simple Definition And Explanation

An angle stop is a right-angle valve installed on the supply line feeding a fixture. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.

Where Angle Stops Are Installed In A Typical Home

Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.

Homeowner Benefits Of Angle Stops

One main benefit of an Angle Valve For Sink is isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.

Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Turning the valve periodically helps keep it from sticking. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff simpler.

Angle Stop Versus Angle Seat Valve

Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. An industrial Angle Seat Valve is a different type of valve. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.

How To Choose From Different Types Of Angle Stops

Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are durable.

Materials

Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.

How Angle Stops Operate

Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They offer low turning force and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves use a rising stem and require several rotations for full shutoff. They can offer finer flow control, but older units are more likely to become difficult to operate.

Connection Types

Compression Angle Stop fittings join with a nut and ferrule and suit copper or CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop connections are soldered to create a slim, permanent joint where torch work is safe and allowed. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.

Extra Angle Stop Features

Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.

Plumbing Angle Stops

Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.

How To Read Angle Stop Sizes And Markings

In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. This identifies the inlet and outlet sizes. Some labels specify 3/8 COMP for compression outlets. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.

Typical Placement In The Home

Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.

Potable Water Code And Safety Notes

In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.

Recommended Angle Stop Standards

Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.

Practical Checklist For Selection

• Check Valve Markings before buying so the inlet type and outlet size match your system.
• Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
• Specify a Lead-Free Angle Stop when the line serves potable water.
• Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.

How To Install And Replace Angle Stops Safely

When tackling a plumbing angle stop, it is important to know when to shut the main water supply. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.

Before the repair begins, collect the necessary tools, fittings, and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.

Checklist:

• Adjustable wrench plus backup wrench
• Pipe cutter and deburring tool
• Thread tape and insertion-depth marker
• Push-fit angle stop and PEX stiffener
• Spare ferrules, nuts, penetrating oil, and towels

Follow specific steps for each connection type. For a compression connection, slide the nut and ferrule onto the pipe and seat the valve squarely against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.

For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.

Sweat angle stop connections need careful preparation and heat control. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.

For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.

Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture gradually. Use a dry towel or tissue to reveal small weeps around fittings. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.

Several common mistakes can cause leaks or early valve failure. Over-tightening compression nuts can deform ferrules and cause leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Avoid sweating valves without protecting seals or removing internal parts. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.

Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.

Angle Stop Problems And Quick Repairs

Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.

Leaking At The Stem Or Handle

In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.

Stuck Valves

Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.

Compression Joint Weeps

A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.

When To Upgrade The Valve

Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.

Fast Repair Checklist

• For stem drips, tighten the packing nut slightly and recheck.
• Use Penetrating Oil and gentle motion for stuck valves.
• Reseat the ferrule or cut back the pipe for compression leaks.
• Upgrade to quarter-turn stops when valves freeze or leak repeatedly.

Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.

Conclusion

The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It can also lower the chance of water damage during fixture upgrades and maintenance.

For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.

When installation feels uncertain, hiring a licensed plumber is the safer option. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. This protects fixtures and simplifies maintenance. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
